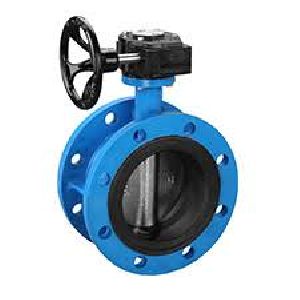

Double Flanged End Butterfly Valves

Double Flanged End Butterfly Valves

MOQ : 1 Piece

Business Type Manufacturer, Exporter, Supplier, Retailer, Wholesaler, Trader
Size Range 40mm to 1000mm
Normative Design Standard IS/ISO 13095 | API609 | BS5155
Normative Testing Standard API 598 | IS/ISO 13095
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Normative Face to Face
As per IS/ISO 13095 | API609 | BS5155
Pressure Rating
PN10 | PN16
End Connection
Flanged to suite ANSI 150 Class, BS Table D & E | DIN PN 10 & 16
Materials Body
CI, SGI/DI, WCB, CF8, CF8M, Super Duplex, etc
Materials Disc
SGI/DI, WCB, CF8, CF8M, Duplex, Nylon Coated, Rubber Coated etc.
Materials Seat
EPDM, Nitrile, Viton, Hypalon, Silicon, PTFE etc.
Brand
Osko

Operation: MS, SG, Aluminium, Stainless Steel Handle | Pneumatically Actuated | Electrically Actuted (Motorised) | Limit & Tamper Switch Fitted

Salient Features / Benefit

  • Low torque resulting in low wear & long life
  • Molded & Replaceable seat options available
  • Easy to assemble & dismantle in replaceable seat
  • Top flange as per ISO 5211 for easy actuation
  • Full Bore gives high CV
  • WCB & SS is Investment Casted Body upto 200mm

Yes! I am interested
