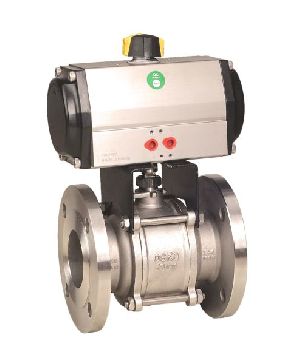

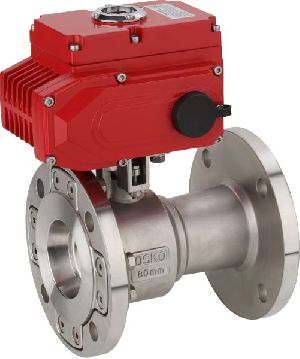

Actuated Ball Valves

Actuated Ball Valves

MOQ : 1 Piece

Business Type Manufacturer, Exporter, Supplier, Retailer, Trader
Size Range 15mm to 100mm
Normative Design Standard IS/ISO 17292 | BS5351
Normative Testing Standard API 598 | IS/ISO 17292
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Normative Face to Face
As per ASME B16.10
Pressure Rating
150#
End connection
Screwed End | Socket Weld End | Flanged End
Materials Body
WCB, CF8, CF8M, Super Duplex, etc
Materials Seat
PTFE , RPTFE, CFT, GFT, PEEK etc
Operation
Pneumatically Actuated, Electrically Actuated (Motorized)
Brand
Osko

Acutation Varients: Single Phase / 3 Phase / DC Power Options Available, Local Control / Remote Control Options Available, Manual Over Ride for operation in case of Power failure, Valve positioning at intermediate positions, Feedback via Limit Switches & Torque Switches

Salient Features / Benefit

  • Full Bore
  • In Cast ISO Mounting Pad
  • Anti Blow out Stem
  • Push Type Gland
  • Floating Ball Type
  • Low Torque
Read More...
