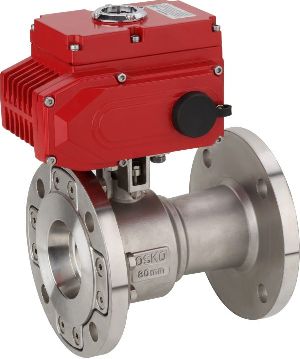

1 Piece IC Flanged End Ball Valves With ISO Mounting Pad
| Business Type | Manufacturer, Exporter, Supplier, Retailer, Wholesaler, Trader |
| Size Range | 25mm to 100mm |
| Normative Design Standard | IS/ISO 17292 | BS5351 |
| Normative Testing Standard | API 598 | IS/ISO 17292 |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Normative Face to Face
ASME B16.10
Ansi Class/ Rating
150#
End Connection
Flanged to suit ASME B16.5 #150
Materials Body
WCB | CF8 | CF8M | Super Duplex | etc
Materials Seat
PTFE | RPTFE | CFT | GFT | PEEK etc
Brand
Osko
Operation: Lever Operated, Gear Operated, Pneumatically Actuated, Electrically Actuated (Motorized)
Salient Features / Benefit
- Easy to maintenance because of Specially designed End Cap/Insert.
- Low Torque & Long Life
- Integral ISO Mounting Pad
- Push Type Gland
- Floating Ball Type
- Mirror Finished Ball
- Sturdy handle
- Anti Static & Fire safe valves available
- Locking Arrangement Available
